Thông tin chi tiết sản phẩm
Place of Origin: CHINA
Hàng hiệu: TANKII
Chứng nhận: ISO9001
Model Number: Nickel 200
Điều khoản thanh toán & vận chuyển
Minimum Order Quantity: 10kg
Giá bán: USD28-30/kg
Packaging Details: usually packed on the spool, film cover on the wire, all the spool putted in the carton, then put the carton on the wooden pallet or in the wooden case
Delivery Time: 7-10 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200ton/Year
Material: |
pure nickel |
shape: |
round wire |
color: |
bright |
temper: |
soft |
package: |
packed on the spool |
Application: |
fuse in the lighting |
Density: |
8.9 |
Melting Point: |
1453 |
Boiling Point: |
2732 |
Material: |
pure nickel |
shape: |
round wire |
color: |
bright |
temper: |
soft |
package: |
packed on the spool |
Application: |
fuse in the lighting |
Density: |
8.9 |
Melting Point: |
1453 |
Boiling Point: |
2732 |

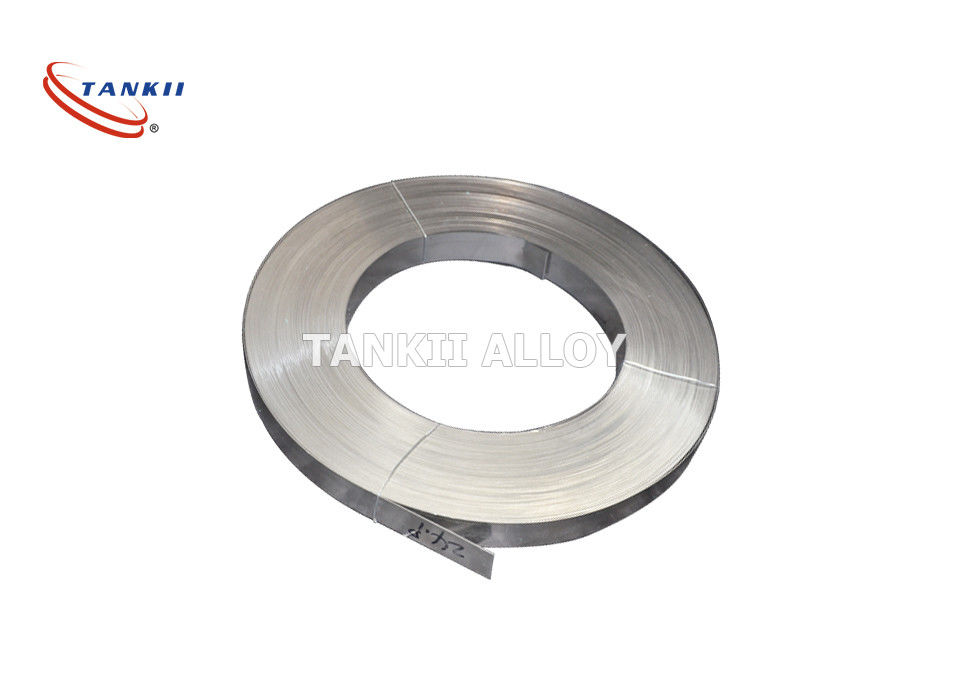

0.2 X 200mm Ni200/Ni201/N6 Pure Nickel Tape for Electric Cars
It has good mechanical strength,corrosion-resistant and heat-resistance strength.
Chemical Composition
| Grade | Element Composition/% | |||||||
| Ni+Co | Mn | Cu | Fe | C | Si | Cr | S | |
| Ni201 | ≥99.0 | ≤0.35 | ≤0.25 | ≤0.30 | ≤0.02 | ≤0.3 | ≤0.2 | ≤0.01 |
| Ni200 | ≥99.0 | /≤0.35 | ≤0.25 | ≤0.30 | ≤0.15 | ≤0.3 | ≤0.2 | ≤0.01 |
Propertis
| Grade | Density | Melting point | Coefficient of expansion | Modulus of rigidity | Modulus of elasticity | Electrical resistivity |
| Ni200 | 8.9g/cm3 | 1446°C | 13.3 µm/m °C (20-100°C) | 81kN/mm2 | 204kN/mm2 | 9.6μW• cm |
| Ni201 | 1446°C | 13.1µm/m °C(20-100°C) | 82kN/mm2 | 207kN/mm2 | 8.5μW• cm |
| Diameter(mm) | Tolerance(mm) | Diameter(mm) | Tolerance(mm) |
| 0.03-0.05 | ±0.005 | >0.50-1.00 | ±0.02 |
| >0.05-0.10 | ±0.006 | >1.00-3.00 | ±0.03 |
| >0.10-0.20 | ±0.008 | >3.00-6.00 | ±0.04 |
| >0.20-0.30 | ±0.010 | >6.00-8.00 | ±0.05 |
| >0.30-0.50 | ±0.015 | >8.00-12.0 | ±0.4 |
Specification of Cold-drawing Strip Type
| Thickness(mm) | Tolerance(mm) | Width(mm) | Tolerance(mm) |
| 0.05-0.10 | ±0.010 | 5.00-10.0 | ±0.2 |
| >0.10-0.20 | ±0.015 | >10.0-20.0 | ±0.2 |
| >0.20-0.50 | ±0.020 | >20.0-30.0 | ±0.2 |
| >0.50-1.00 | ±0.030 | >30.0-50.0 | ±0.3 |
| >1.00-1.80 | ±0.040 | >50.0-90.0 | ±0.3 |
| >1.80-2.50 | ±0.050 | >90.0-120.0 | ±0.5 |
| >2.50-3.50 | ±0.060 | >120.0-250.0 | ±0.6 |
Do you need a different steel quality or dimension? Please write to us. Our sales team makes an offer from stock program or delivery program :)
Wire made of nickel is characterized by the following properties:
excellent acid resistance.
