Thông tin chi tiết sản phẩm
Nguồn gốc: Thượng Hải
Hàng hiệu: TANKII
Chứng nhận: ROHS,ISO9001
Số mô hình: CuNi44
Điều khoản thanh toán & vận chuyển
Số lượng đặt hàng tối thiểu: 20kg
Giá bán: usd+15~30+kg
chi tiết đóng gói: ống chỉ, thùng carton, pallet
Thời gian giao hàng: 8-20 ngày
Điều khoản thanh toán: L / C, T / T, Western Union
Khả năng cung cấp: 200 + TÔN + THÁNG
Vật chất: |
Đồng niken |
Hình dạng: |
Tròn |
Kích thước: |
0,01--10mm |
Độ bền kéo (N / mm2): |
> 420 |
Vật chất: |
Đồng niken |
Hình dạng: |
Tròn |
Kích thước: |
0,01--10mm |
Độ bền kéo (N / mm2): |
> 420 |

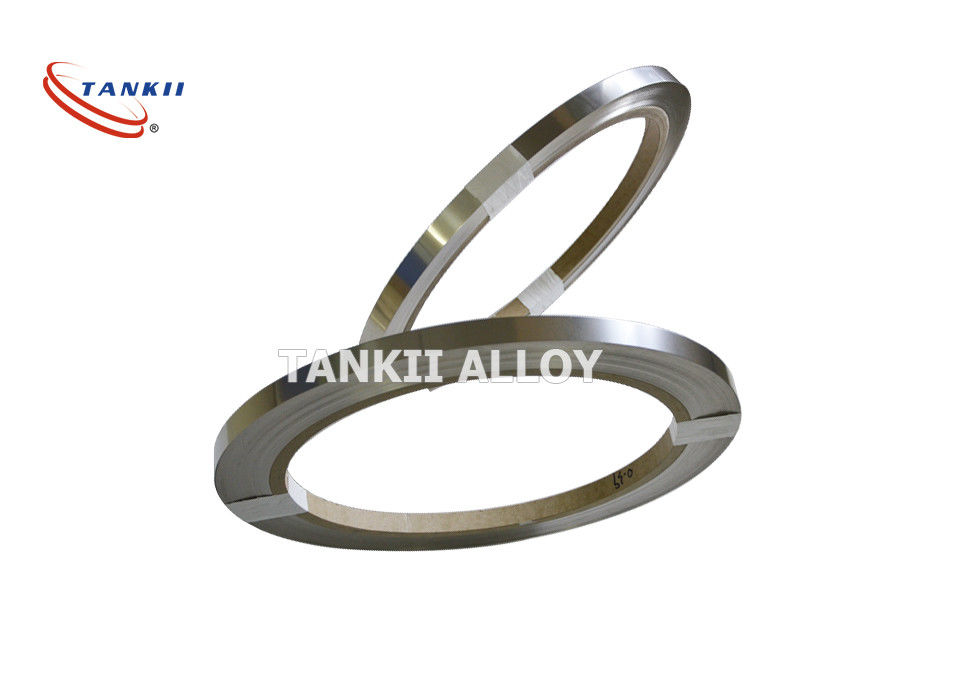

Cuprothal 294/Alloy 294/MWS-294 copper nickel constantan wire CuNi44
Copper nickel resistance heating wire, which has low electric resisitance, good heat-resistant and corrosion-resistant, easy to be processed and lead welded. It is used to make the key components in the thermal overload relay, low resistance thermal circuit breaker, and the electrical appliances. It is also an important material for electrical heating cable. It's similar as s type cupronickel.
The more composition of Nickel,the more silver white the surface to be.
Size dimension range:
Wire: 0.01-10mm
Ribbons: 0.05*0.2-2.0*6.0mm
Strip: 0.05*5.0-5.0*250mm
Bar:10-50mm
Chemical Content(%) CuNi44
Ni | Mn | Fe | Si | Cu | Other | ROHS Directive | |||
Cd | Pb | Hg | Cr | ||||||
44 | 1.50% | 0.5 | - | Bal | - | ND | ND | ND | ND |
Mechanical Properties CuNi44
Max Continuous Service Temp | 400 ºC |
Resistivity at 20ºC | 0.49 ± 5% ohm*mm2/m |
Density | 8.9 g/cm3 |
Temperature Coefficient of Resistance | < -6 ×10-6/ºC |
EMF VS Cu (0~100ºC) | -43 μV/ºC |
Melting Point | 1280 ºC |
Tensile Strength | Min 420 Mpa |
Elongation | Min 25% |
Micrographic Structure | Austenite |
Magnetic Property |
Non. |
Copper nickel alloy series:
CuNi1, CuNi2, CuNi6, CuNi8, CuNi10, CuNi14, CuNi19, CuNi23,CuNi30, CuNi34, CuNi44.
Also named NC003, NC005, NC010, NC012, NC015, NC020, NC025, NC030, NC035, NC040, NC050.
